Advances in automation systems and an increased focus on energy efficiency are driving the use of various electrical control devices in the industrial sector. One component that plays a key role in supporting these operations is the contactor.
Understanding how a contactor works can help you grasp how high-power industrial equipment can be operated automatically, safely, and efficiently. Read the following discussion to gain a deeper understanding of its functions, types, and operating mechanisms.

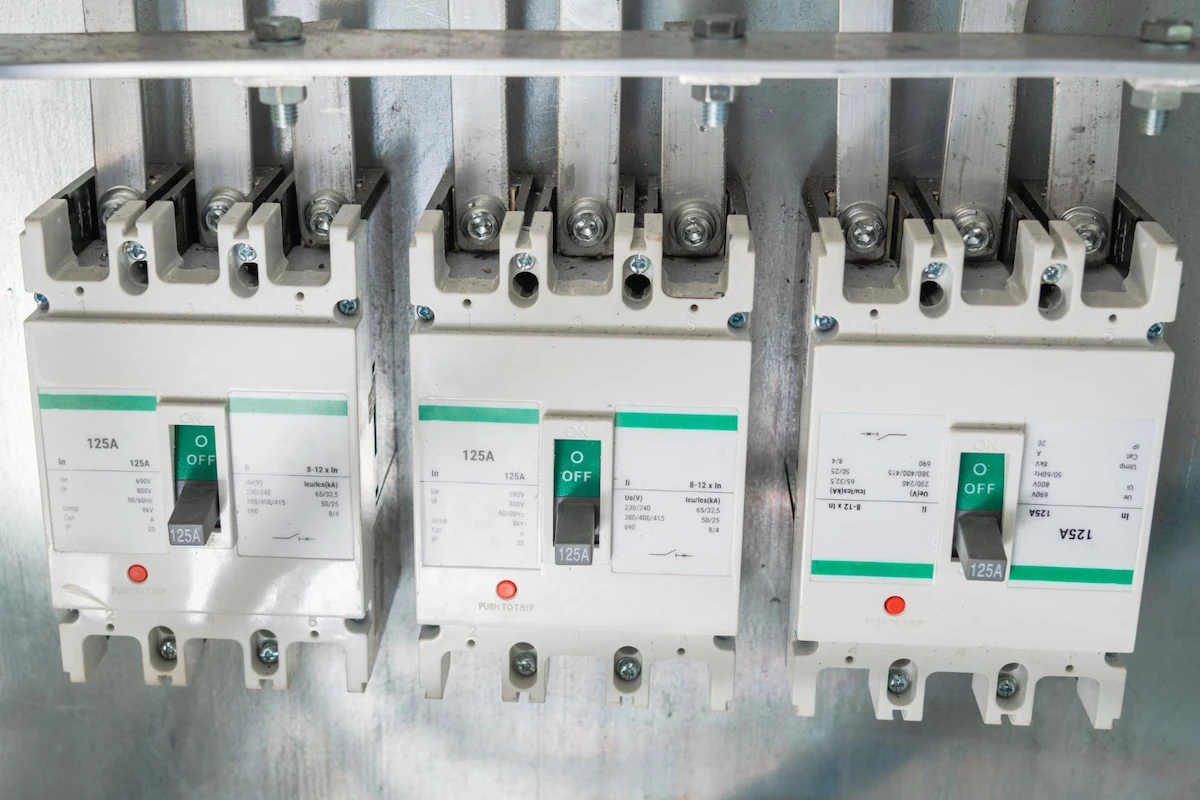

What Is a Contactor?
A contactor is an electromagnetic switch used to automatically connect and disconnect the flow of electricity in a circuit.
This device enables control of high-power equipment using a smaller electrical signal, so the operator does not need to interact directly with the main power source.
Designed to handle high electrical currents and frequent operations, contactors are a vital component in automation and power distribution systems.
Contactors are often associated with relays because both devices are used to open and close electrical circuits. However, relays are generally used in control circuits that handle relatively low currents and voltages.
Meanwhile, contactors are designed to control high-power electrical loads, such as electric motors, HVAC systems, compressors, and various industrial machines that require higher current capacity and operating frequencies.
The Working Principle of a Contactor
The working principle of a contactor relies on the electromagnetic force generated by an electric current. When current flows through the coil (electromagnetic coil), a magnetic field is formed that attracts the contactor’s core.
This process causes the moving contacts to connect with the stationary contacts, thereby closing the circuit and allowing current to flow to the load. Conversely, when the current to the coil is interrupted, the magnetic field disappears, and the contacts return to their original positions, opening the circuit.
Contactors can operate using either AC (Alternating Current) or DC (Direct Current) at various voltage levels. Specifically in AC contactors, a component called a shading coil helps maintain magnetic field stability and reduce vibrations when the current passes through zero.
How a Contactor Works
During operation, a contactor operates through a series of processes that begin with the receipt of a control signal and end with the interruption of electrical current to the load. The steps are as follows:
1. The Control System Sends a Signal to the Coil
The process begins when an operator presses a button, sensor, timer, or PLC (Programmable Logic Controller) to send an electrical signal to the contactor coil. This signal generally has a lower voltage than the main power circuit.
When the coil receives this signal, the contactor is ready to perform its primary function, that is, to connect or disconnect the electrical current in the higher-voltage power circuit.
2. The Coil Generates a Magnetic Field
After receiving an electrical signal, the coil inside the contactor is energized, generating a magnetic field. This magnetic field serves as the source of the force that moves the contactor’s internal components.
The conversion of electrical energy into magnetic energy is the key principle that enables the contactor to operate automatically.
3. The Armature Moves and the Contacts Close
The magnetic field generated by the coil attracts the armature, which is a movable metal component inside the contactor. The armature movement causes the contacts inside the contactor to close. When the contacts close, the electrical circuit is completed, allowing current to flow to the connected load.
4. Electric Current Flows to the Load
Once the main contacts are closed, the electrical path is complete, allowing current to flow to the connected load. At this stage, equipment such as electric motors, pumps, compressors, and production machinery begins to receive power and operate according to the control system's instructions.
5. Signal Stops, and the Contacts Reopen
When the control system stops the signal to the coil, the previously formed magnetic field disappears. The return spring then moves the armature back to its initial position, causing the main contacts to open. This breaks the electrical current to the load and safely stops the equipment’s operation.
Read also: Wastewater Treatment Plant (WWTP): Functions and Stages
Functions of a Contactor
Contactors play a vital role in electrical and industrial automation systems by enabling safe, efficient, and automatic control of high-power equipment. More specifically, here are some of their functions:
1. Connecting and Disconnecting Electrical Circuits
Contactors are used to automatically connect and disconnect the electrical supply to high-power loads. This allows industrial equipment to operate as needed without requiring manual operation.
2. Enhancing Operational Safety
Contactors help reduce the risk of electric shock, equipment damage, and potential workplace accidents during operation by separating the control circuit from the power circuit.
3. Isolating Circuits During Maintenance
During inspections or repairs, contactors can cut off the power supply to equipment so that technicians can work more safely without being exposed to live voltage.
4. Facilitating Remote Control
Contactors allow operators to control electrical equipment from a control panel without being near the main power source. This improves both efficiency and workplace safety.
Read also: What Is Electrical Grounding? Understand How It Works Here
Types of Contactors
Contactors are available in various types designed to meet the needs of different electrical systems. Here are some commonly used types of contactors:
1. Power Contactor
A power contactor is the most common type of contactor used to control high-power electrical loads. These contactors are widely used in electric motors, pumps, compressors, HVAC systems, and various industrial machines.
2. Capacitor Switching Contactor
A capacitor switching contactor is used to connect and disconnect capacitor banks in power factor correction systems.
This type of contactor is designed to handle the inrush current that typically occurs when capacitors are first connected to the power grid, thereby helping to protect system components from damage.
3. Lighting Contactor
This type of contactor is used to control large-scale lighting systems in office buildings, shopping centers, stadiums, and industrial facilities.
These contactors allow lights to be operated centrally, automatically, or according to a specific schedule to improve energy efficiency.
4. Definite Purpose Contactor
A definite purpose contactor (DPC) is a type of contactor designed for specific applications with predetermined specifications. This contactor differs from a power contactor, which is more flexible for various industrial needs.
DPCs are generally used in specific equipment such as HVAC (heating, ventilation, and air conditioning) systems, air conditioning units, compressors, pumps, and refrigeration equipment.
