The reliability of the electrical system becomes an important factor in maintaining safe and stable industrial operations. Disturbances such as current leaks, short circuits, and voltage surges can affect machine performance and increase the risk of damage to production equipment.
One component that plays a significant role in supporting this safety is electrical grounding, which helps protect industrial installations and equipment from various electrical disturbances.
Learn more about the function of electrical grounding and how this system works in maintaining the safety and stability of industrial operations in this article.
What Is Electrical Grounding?
Electrical grounding is a safety system in electrical installations that channels excess or leakage current to ground. This system generally uses conductive cables and electrode rods that are embedded in the ground as the current-carrying medium.
Electrical grounding is widely used in various installations, ranging from residential houses and office buildings to industrial facilities and lightning protection systems. This system also plays an important role in modern electrical installation safety standards.
How Electrical Grounding Works
The working principle of a grounding system is to provide a dedicated path to channel excess or leakage current directly to ground. This system helps maintain the safety of installations by preventing electrical current from flowing to equipment, building structures, or operational areas.
In practice, electrical grounding connects electrical installations or equipment to ground electrodes buried in the ground via conductive cables. Electrodes are electrical conductors used to make contact with non-metallic parts of a circuit.

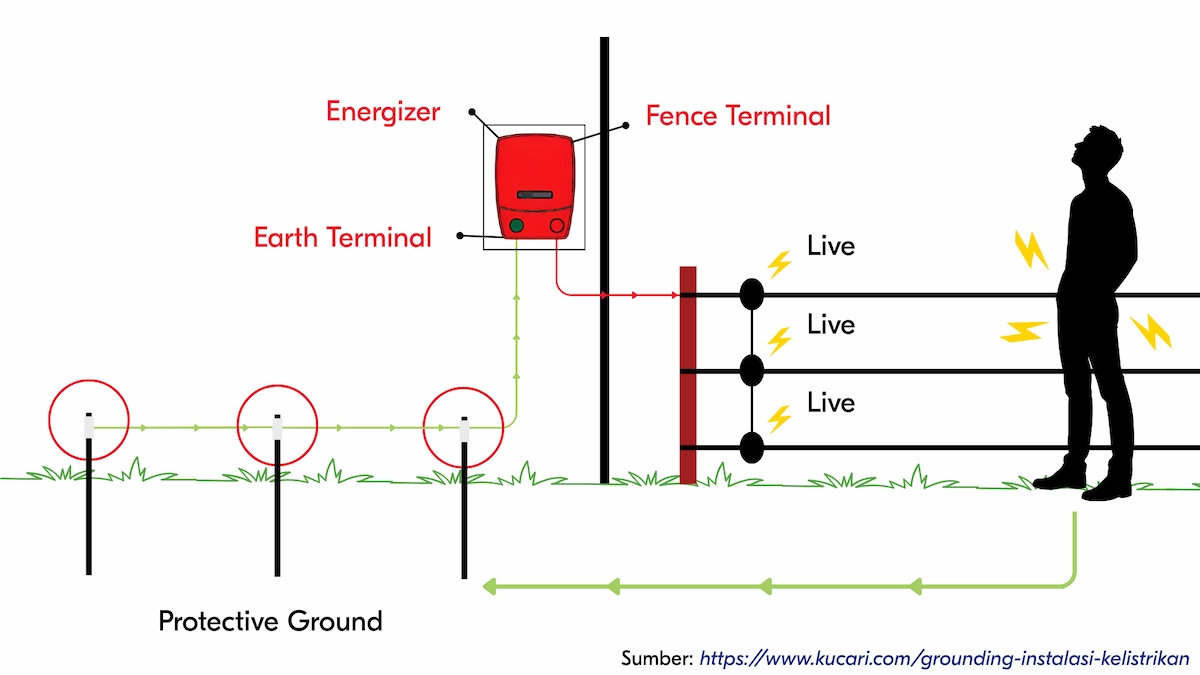

Under normal conditions, the grounding path does not carry electrical current and only functions as a safety system. For more clarity, here is an illustration or diagram of electrical grounding that is commonly applied:
When disturbances such as short circuits, current leaks, or voltage surges due to lightning strikes occur, the electric current will be diverted through the grounding path to the earth. This process helps reduce the risk of electric shocks, equipment damage, and disturbances in industrial electrical systems.
Read also: 6 Types of Alternative Energy Sources for the Future
The Function of Electrical Grounding
The grounding system is an important component in various electrical installations, whether in homes, buildings, or industrial facilities. Here are some functions of electrical grounding:
1. Protecting Electrical Installations from Lightning Strikes
One function of electrical grounding is to protect electrical installations from the effects of lightning strikes. When lightning strikes a building, high-voltage electrical current can enter the electrical system, posing a risk of damage to electronic devices or electrical installations.
Under such conditions, grounding systems channel the electric current from a lightning strike directly into the ground, thereby minimizing the risk of damage, short circuits, and fires.
Generally, grounding for lightning protection systems is installed separately from the electrical grounding of industrial installations to ensure the protection operates more safely and optimally.
2. Preventing Electrical Leakage
In electrical systems, potential differences or excess electrical charges can trigger electrical current leakage. This condition occurs when the electric current flows through unintended paths, which can interfere with the performance of installations and industrial equipment.
Electrical leakage poses risks such as short circuits, damage to production machinery, operational disruptions, and even potential fires. Therefore, electrical grounding plays an important role in helping maintain the safety of the electrical system.
The grounding system channels excess charge or leakage current directly to ground, ensuring that the flow of electricity remains stable and safe.
3. As an Electrical Network Protection System
In an industrial environment, electrical grounding functions as a protection system to ensure the safety of the entire network and electrical equipment. This system helps protect production machines, electrical panels, and industrial electronic devices from electrical disturbances caused by current leakage or insulation failure.
When insulation fails, electric current can flow to metal parts of equipment, causing sparks or voltage surges. This condition poses a risk of machine damage, operational disruptions, and workplace accidents.
However, through a grounding system, such excess electrical current can be immediately directed to the ground, thereby minimizing potential hazards.
To support the safety and reliability of industrial electrical systems, the use of appropriate energy infrastructure is also important for maintaining optimal operations.
Through PT Krakatau Chandra Energi (KCE), as a subsidiary of PT Chandra Daya Investasi Tbk (CDI) #YourGrowthPartner, you can access energy and industrial utility services designed to maintain the stability and efficiency of your business operations.
KCE provides integrated energy solutions through electricity supply services with solar panel-based renewable energy, as well as the operation and maintenance of electrical networks to help keep business operations safe and efficient.
Currently, KCE serves 200+ customers from industrial, business, social, and government sectors, as well as 1,500+ household customers, as part of its commitment to providing reliable and sustainable energy services.
Read also: The Potential and Importance of Renewable Energy Investment
Types of Electrical Grounding
Electrical grounding has several types that are used according to the needs of the installation and electrical system. Three common types of electrical grounding are widely used and have been referred to in international standards, namely:
1. TT Grounding System (Terra-Terra)
The TT grounding system is a grounding method that connects the neutral point of the power source and the customer's installation separately to the ground. This system is easy to install and is generally used for small to medium installations.
Additionally, the TT grounding system is suitable for use in rural areas or in areas with limited electricity distribution networks.
2. TN (Terra-Neutral) Grounding System
The TN grounding method connects the neutral point of the power source directly to the ground and is integrated with the electrical installation grounding system.
In this system, fault current is conducted through the protective conductor back to the power source, allowing protective devices to operate more quickly.
The TN grounding system is widely used in industrial facilities, commercial buildings, and areas with high electricity demands because it provides better protection against electrical faults and supports electrical system stability.
3. IT Grounding System (Isolated Terra)
The IT grounding system is a grounding method that uses an electrical source without a direct connection to the earth or only through high impedance. This system is designed to maintain the continuity of the power supply during disturbances in the installation.
In an IT grounding system, the first current fault generally does not directly cause the electrical system to shut down, allowing operations to continue.
Therefore, this system is widely used in industrial facilities, hospitals, data centers, and areas that require a highly reliable power supply.
That concludes the information on electrical grounding, from definitions, functions, and working principles to the types of grounding systems commonly used in industrial installations.
If your company requires reliable and efficient electrical solutions to support industrial operations, trust CDI and KCE with your needs!
Read also: Smart Grid: Definition, Benefits, and How It Works
