The rising electricity demand is driving the development of more efficient and environmentally friendly power generation technologies. One innovation widely used today is the combined cycle power plant (CCPP).
By integrating a gas turbine and a steam turbine into a single system, combined cycle power plants achieve higher energy efficiency than conventional power plants. Let’s take a closer look at this innovation in the following article!

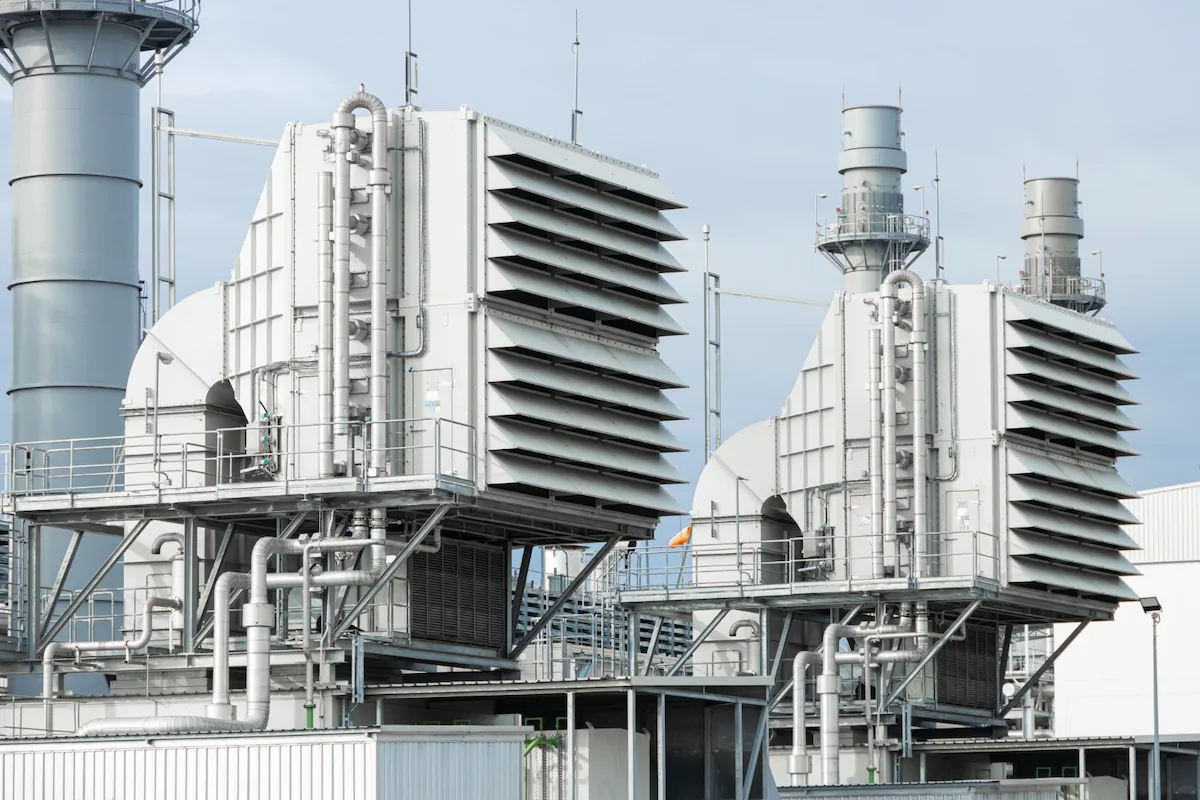

What Is a Combined Cycle Power Plant?
A combined cycle power plant is a type of power plant that integrates two energy generation cycles, namely gas turbines and steam turbines, into a single integrated system.
In this system, the gas turbine first generates electricity by burning fuel. The waste heat from this process is not immediately released but instead utilized to generate steam through a heat recovery steam generator (HRSG).
The steam produced is then used to drive a steam turbine, generating additional electricity. By reusing heat energy that would otherwise be wasted, CCPPs can significantly improve power generation efficiency compared to conventional power plants.
How a Combined Cycle Power Plant Works

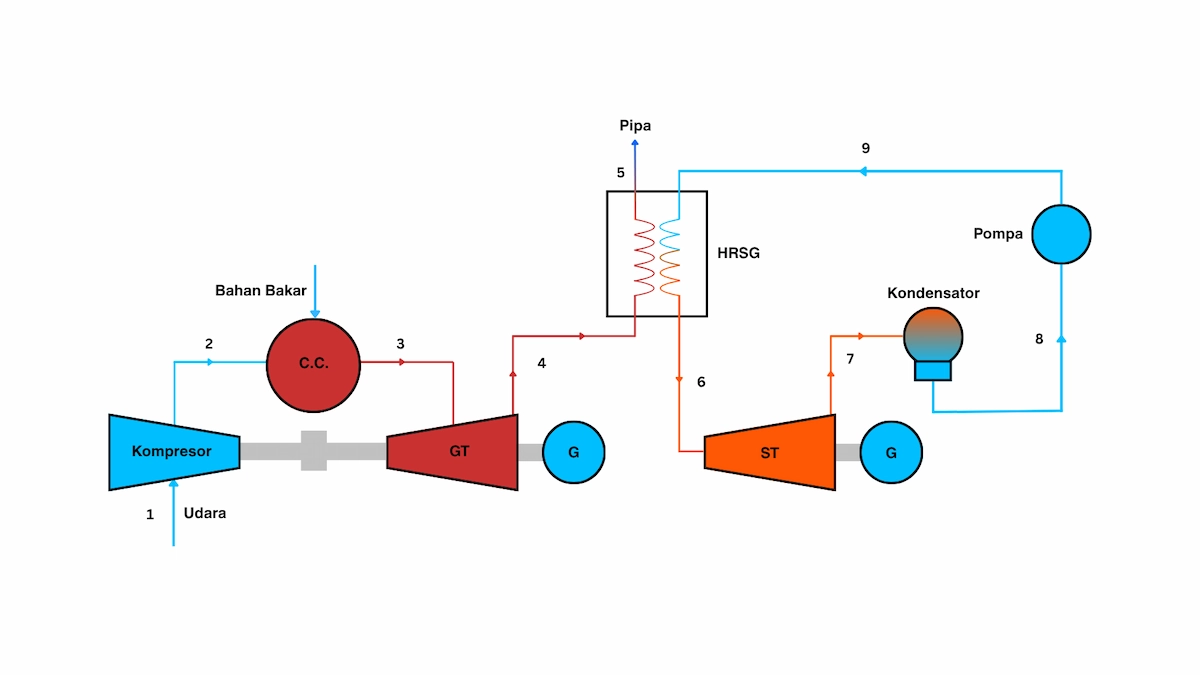

A combined cycle power plant (CCPP) operates through two interconnected main cycles to generate electricity more efficiently. To understand these cycles, take a close look at this combined cycle power plant diagram:
In the first stage, ambient air is drawn in and filtered to remove impurities. Once clean, the air is then compressed by a compressor. This high-pressure air is then mixed with fuel, such as natural gas, and burned in the combustion chamber.
This combustion process produces high-pressure, hot gas that drives a gas turbine, enabling the generator to produce electricity.
After passing through the gas turbine, the exhaust gas, which is still at a high temperature, is not immediately discharged. This heat is used in a heat recovery steam generator (HRSG) to heat water to high-pressure steam.
Next, the high-pressure steam produced by the HRSG is used to drive a steam turbine. This turbine is connected to a generator, enabling it to generate additional electricity without requiring new fuel.
Read also: Industrial Wastewater Treatment: Definition and Process
Benefits of Combined Cycle Power Plants
Combined cycle power plants (CCPPs) offer various benefits that make them a preferred choice in modern power generation systems. Here are some of their advantages:
1. Higher Energy Efficiency
Combined cycle power plants (CCPPs) generate electricity with higher efficiency than conventional power plants. This is because the waste heat from the gas turbine is reused to generate additional energy. As a result, energy usage is optimized and less wasteful.
2. Reduced Exhaust Emissions
Combined cycle power plants (CCPPs) can significantly reduce exhaust gas emissions compared to conventional power plants. This is because the system optimally utilizes heat, resulting in more efficient fuel consumption.
With lower fuel consumption, greenhouse gas emissions, such as carbon dioxide (CO₂), are also reduced. Additionally, the combustion process in CCPPs tends to be cleaner and more controlled. This technology effectively reduces emissions of harmful pollutants such as nitrogen oxides (NOx) and sulfur dioxide (SO₂).
3. More Efficient Operating Costs
The high efficiency of CCPPs results in more economical fuel usage. This directly reduces the plant’s operating costs. In the long term, this system offers more optimal economic benefits.
4. Operational Flexibility
Combined cycle power plants (CCPPs) can adjust electricity output according to load requirements. This system can respond quickly to changes in energy demand. This makes CCPPs ideal for maintaining the stability of the electricity supply.
With these benefits, the application of CCPP technology is a strategic solution for industries requiring a reliable, efficient, and sustainable energy supply.
If you need support in developing energy infrastructure based on combined cycle power plants, trust the integrated energy solutions from Chandra Asri Group!
As #YourGrowthPartner and a subsidiary of the Chandra Asri Group, Chandra Daya Investasi provides electricity supply solutions through Krakatau Chandra Energi (KCE), which operates a combined cycle power plant.
With a capacity of approximately 120 MW, Krakatau Chandra Energi (KCE) plays a key role in meeting the energy needs of the Krakatau Industrial Estate (KIK), which spans approximately 2,666 hectares.
This service has reached 216 customers across industries, businesses, social sectors, and government entities, and 1,609 residential customers.
Using CCPP-based gas-steam power plant technology, Krakatau Chandra Energi (KCE) ensures a stable, efficient, and reliable electricity supply tailored to the operational needs of modern businesses.
Read also: Sustainable Supply Chain: Definition, Benefits, & Components
Components of a Combined Cycle Power Plant
In a combined cycle power plant (CCPP), several key components are integrated to generate electricity through two energy cycles. The following are the main components of a CCPP:
- Gas turbine: The gas turbine is the first component in a CCPP system. Within it, fuel combustion produces high-pressure, hot gas that drives the turbine and generates electricity.
- Steam turbine: The steam turbine is driven by high-pressure steam produced by the HRSG. This turbine then drives the generator, producing additional electricity.
- Heat recovery steam generator (HRSG): An HRSG uses waste heat from the gas turbine to generate steam. This component is crucial because it connects the gas and steam cycles.
That concludes the information on combined cycle power plants (CCPPs). With technology capable of optimizing energy use, CCPPs offer a viable solution for meeting modern electricity needs while supporting emissions-reduction efforts.
